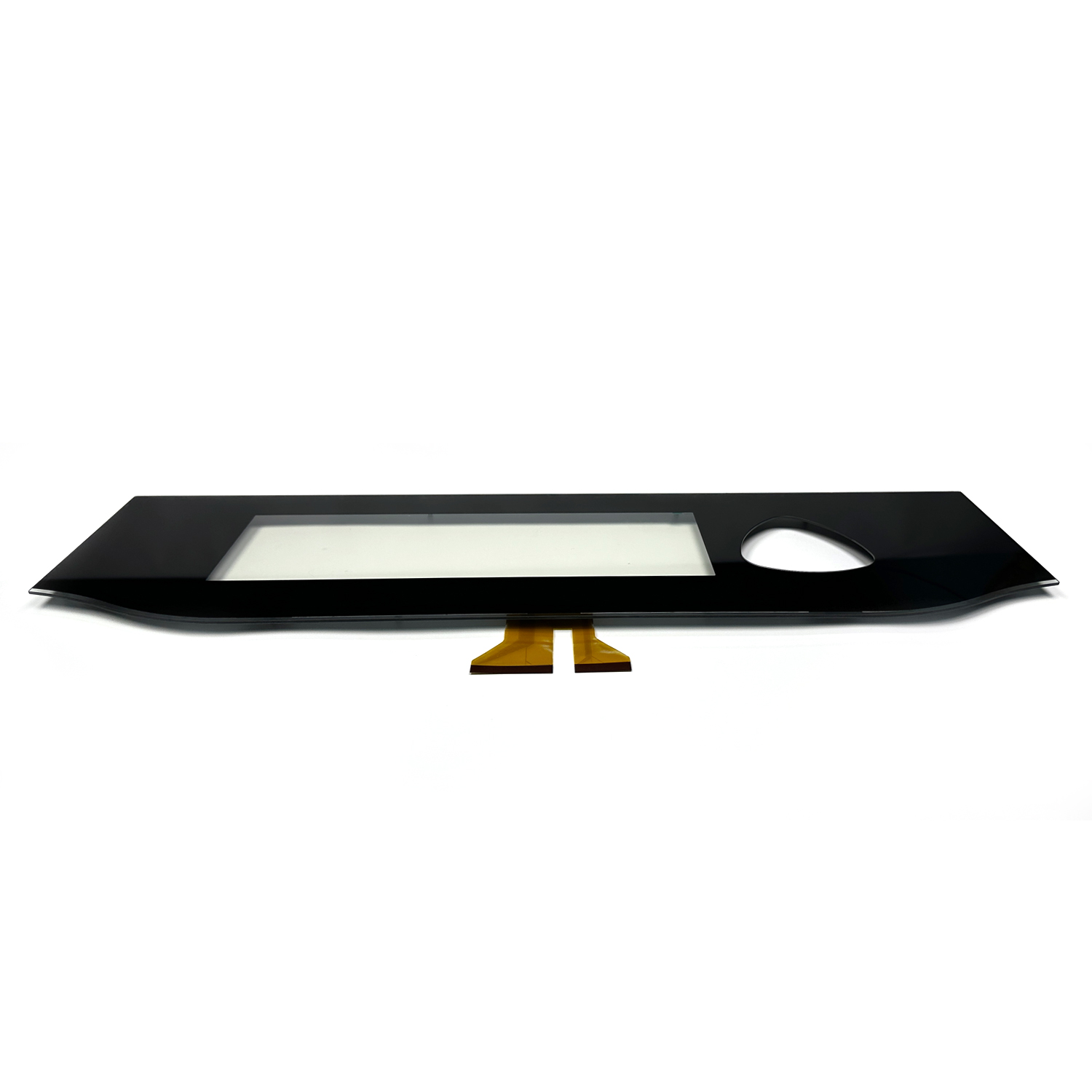

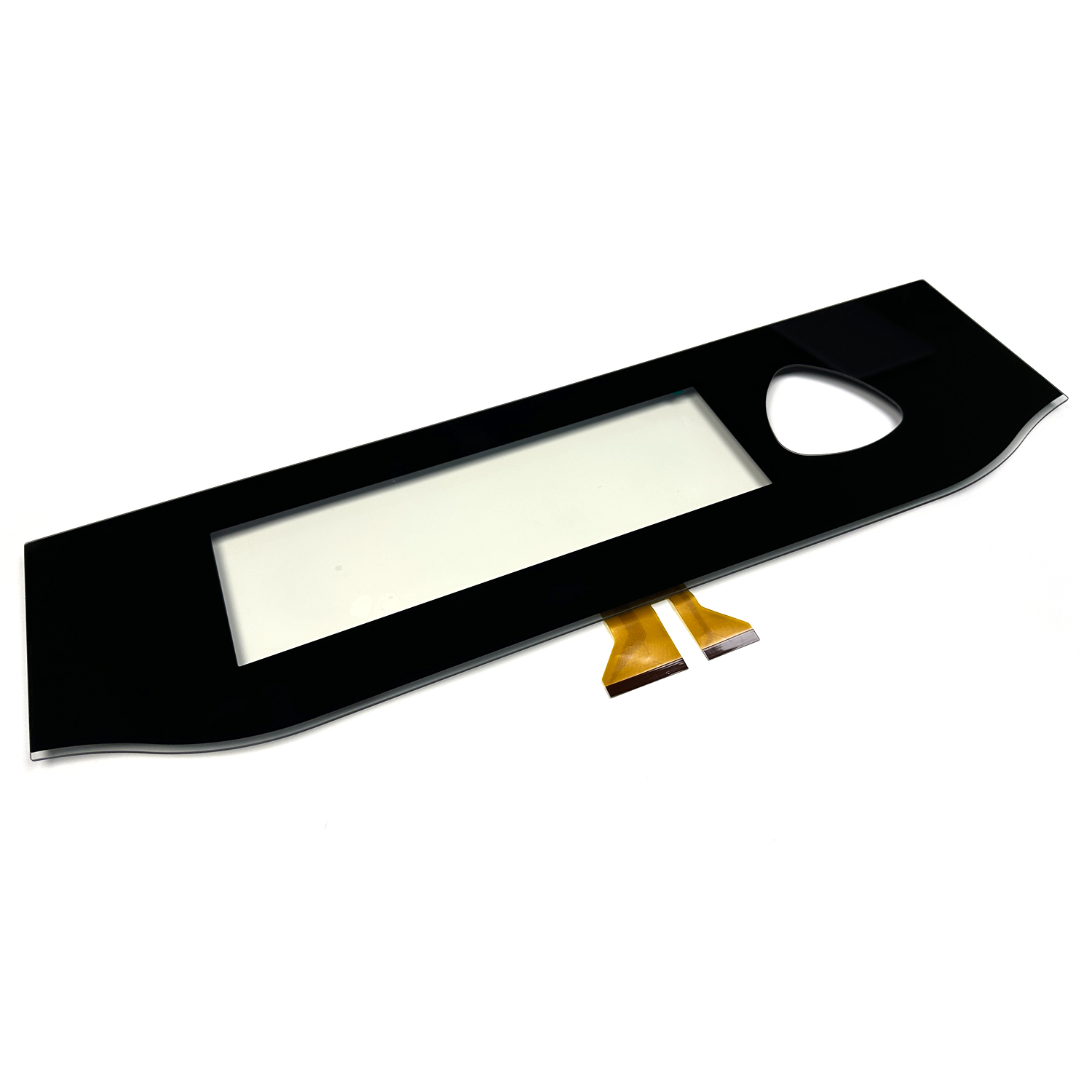

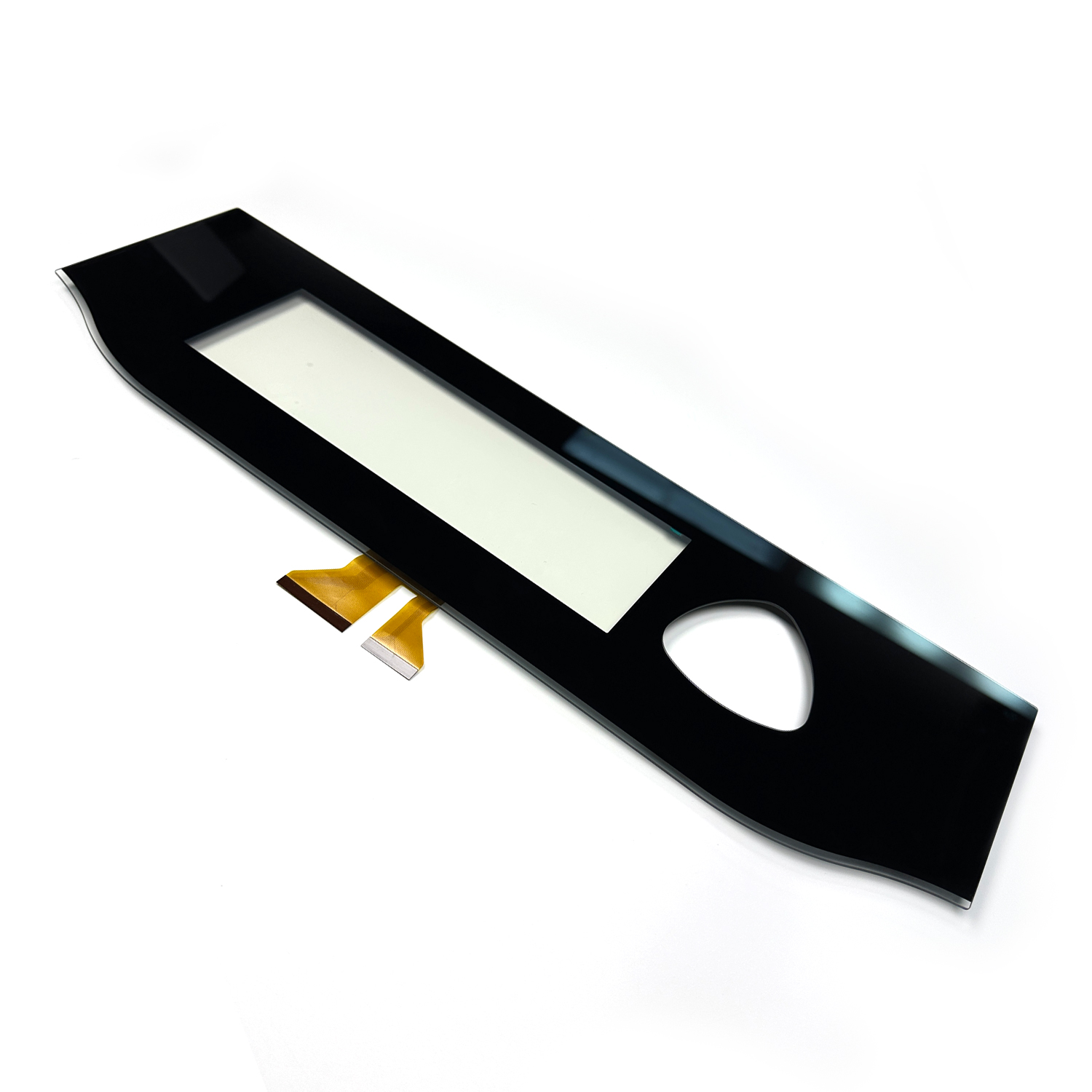

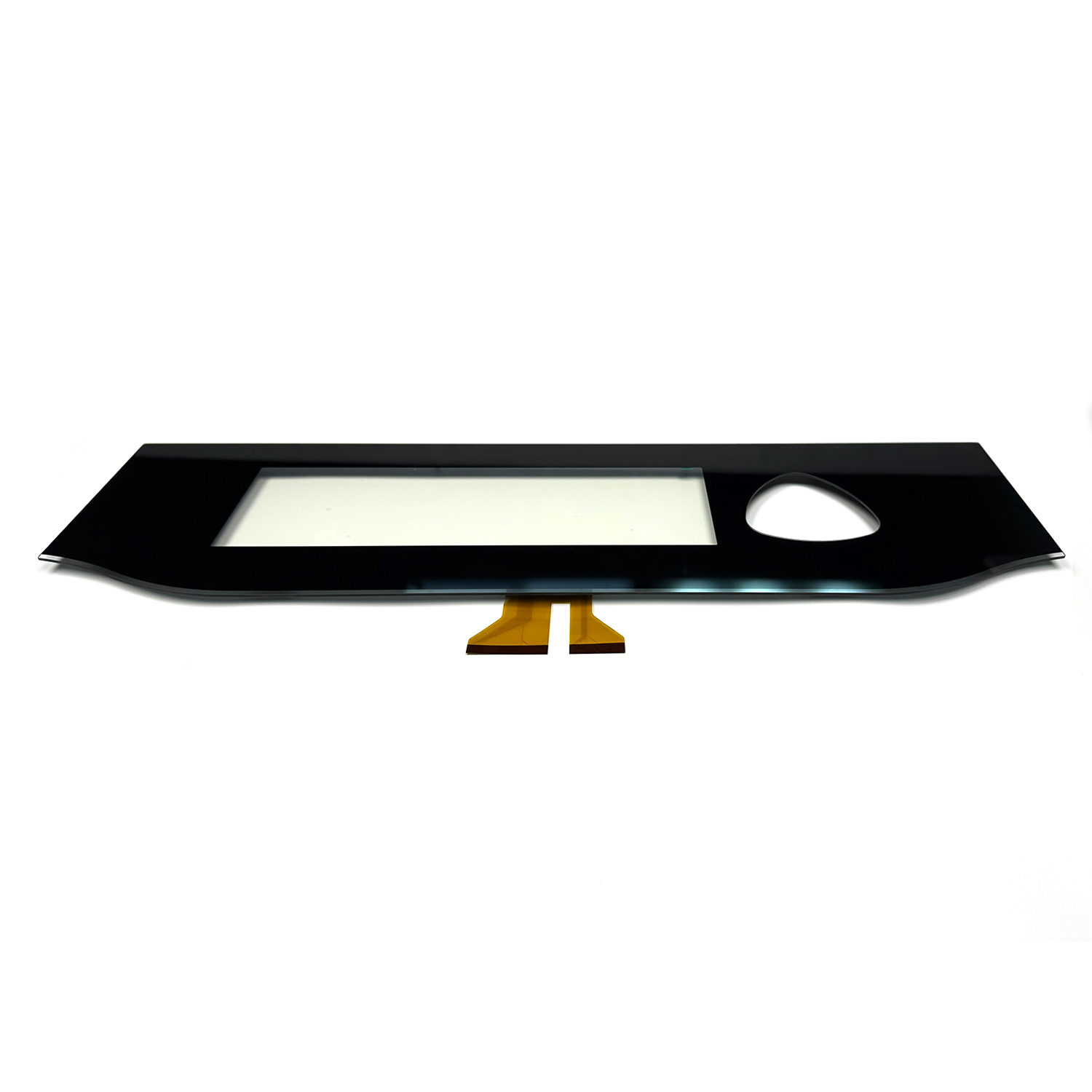

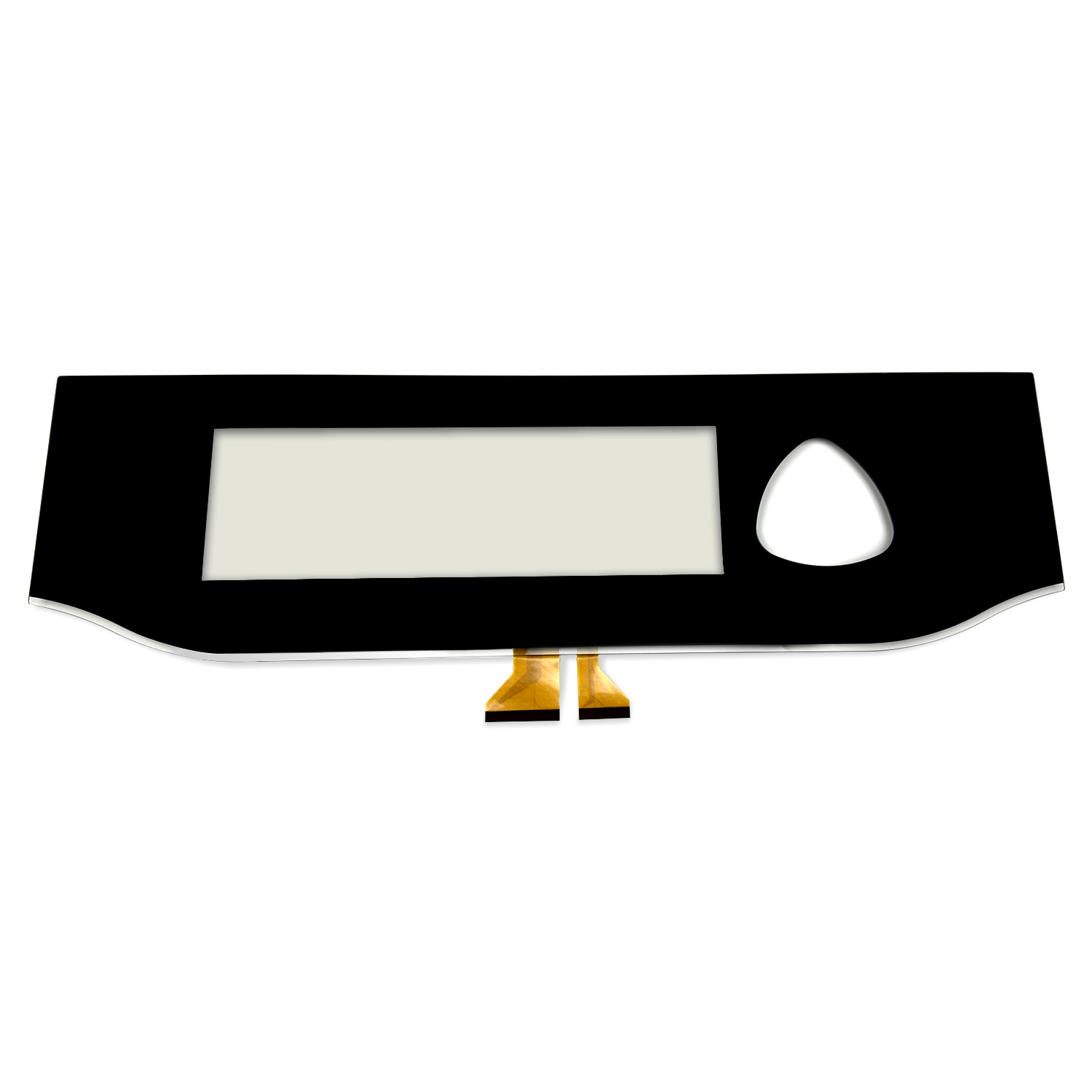

Aristocrat Helix XT (Fit Dual Ribbon Button)

11.8"TouchScreen&Controller

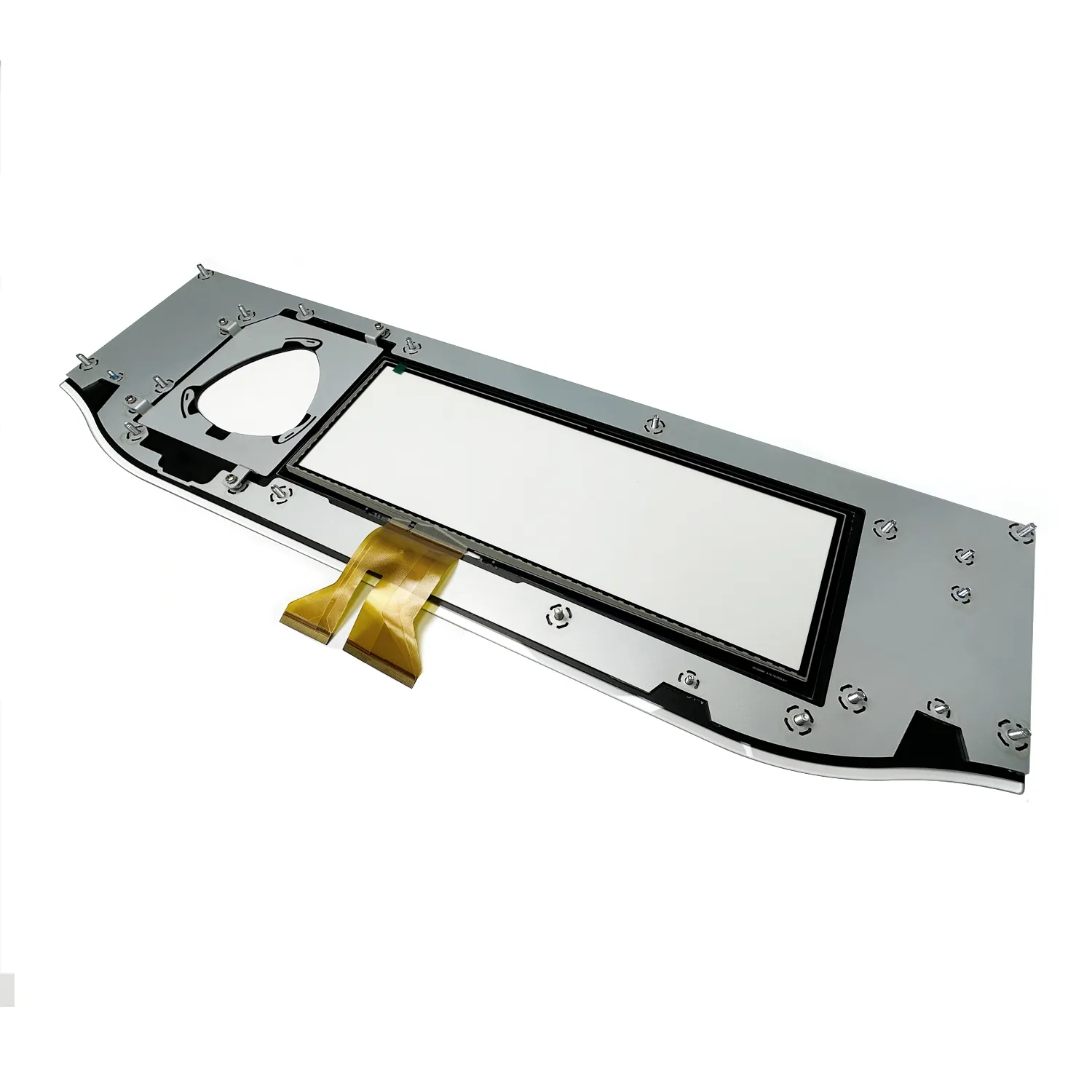

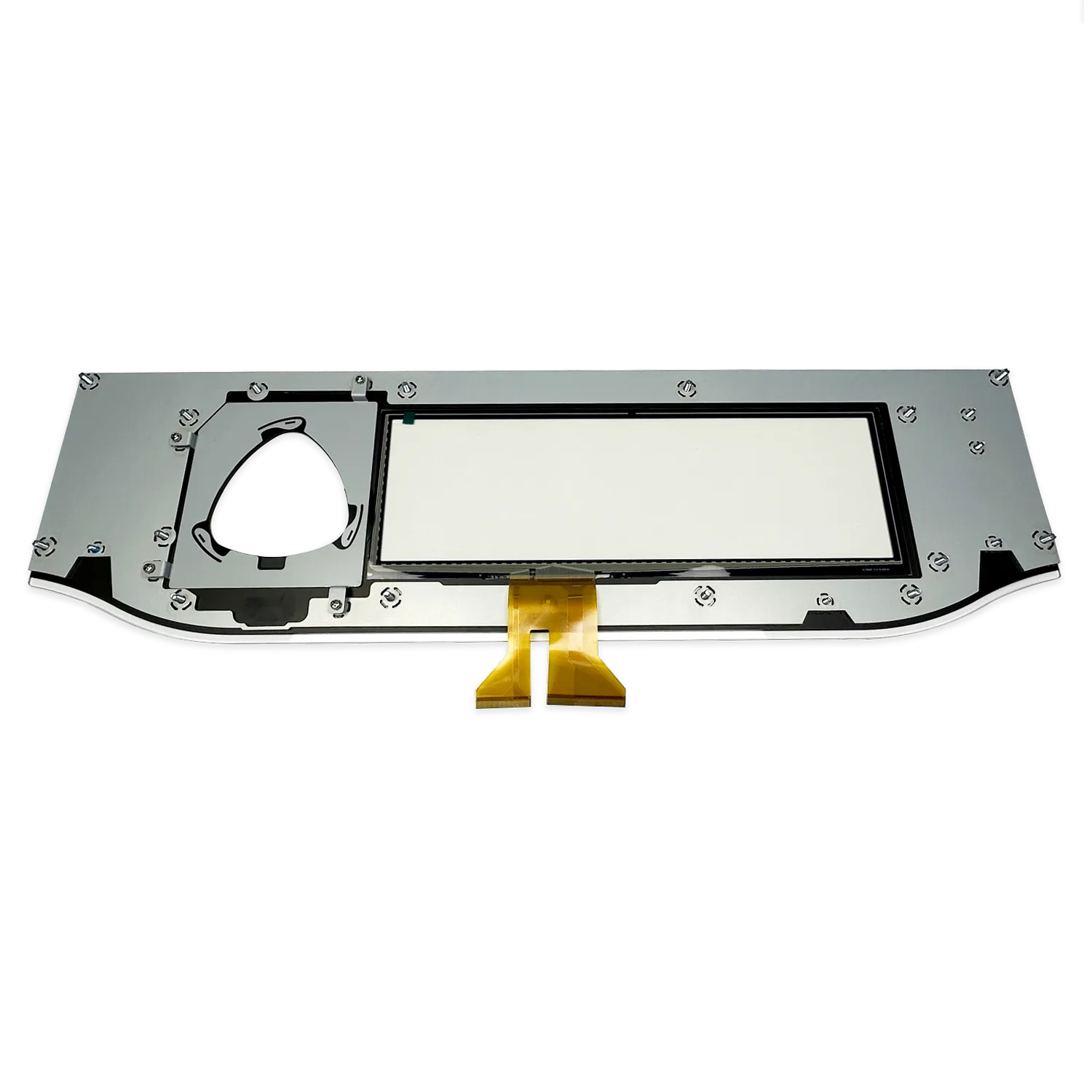

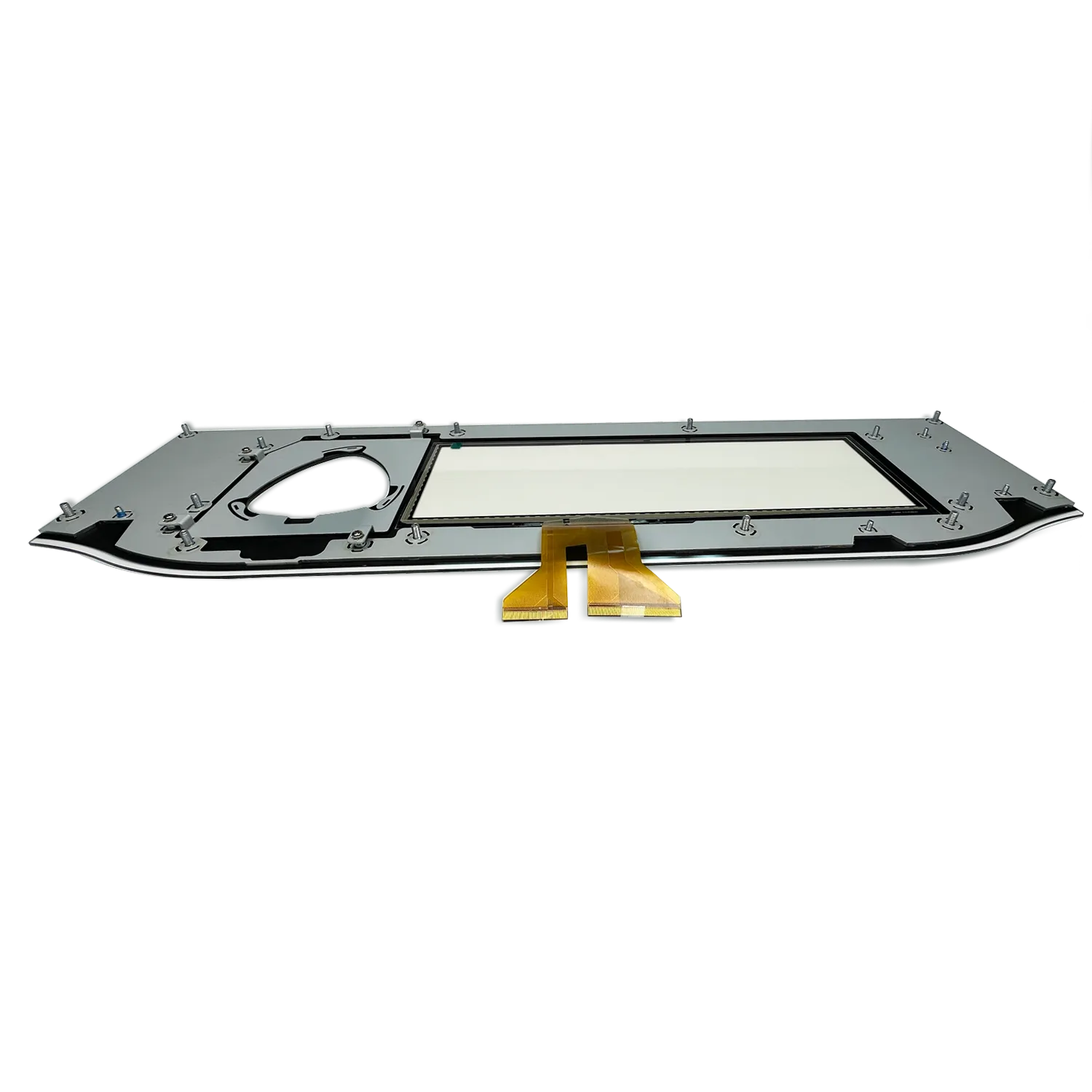

With the same dimensions as the original model, this capacitive touchscreen is specifically designed for upgrading and replacing the touch sensor on the Aristocrat Helix XT touch button panel deck (VBD). It features an integrated metal backplate and includes a controller.

  • Monitor P/N: 591566-206
  • Monitor Model: KTB158DPA03
  • TMD Model: TPC118F-V1GC

touchscreen-controller-tps7844
arsitocrat-helix-xt-button-panel-touchscreen
arsitocrat-helix-xt-button-panel-touchscreen-tpc118f-v1gc-1

If you want to change our product to the machine, it is very simple.

1.Remove the old touch screen

2.Load it with our products

3.Plug in the cable, start the machine, and we're done.

Perfect match, no extra work required.

Technical parameters and characteristics
aristocrat helix xt button panel touchscreen
Touch Technology
Touch Points
Touch Construction
Touch Cover
Interface Type
Luminousness
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade
P-CAP
10Points（Max）
G+G
Glass T=1.8mm
USB2.0, RS232(Optional),IIC(Optional)
≥85%
Finger
2mm（Central）, 2. 5mm（Edge）
<10ms
Windows xp/7 /8/10, Linux, Android, macOS
Customize protocol for USB and RS232 interface
Supports Upgrade Firmware Via RS232 And USB Interface
Proven Projected capacitive touch technology，multi-touch and independent single-touch do not nterfere with each other.
P-CAP——​
S-CAP——  ​
The touch point jumps and drifts when multi-touch occurs​
The touch point keeps stable when multi-touch occurs
Quality Assurance
  • 2011

  • 07-07

Products are assembled in a dust-free workshop

all accessories are made of raw materials, no second-hand materials

tmdtouch-panel-production-workshop-1
tmdtouch-panel-production-workshop-2
FAQ
Q1.What services do we provide?
TMDtouch is a technology-driven R&D and manufacturing company, specializing in the touch and display field for 13 years, and has been designing and manufacturing touch display hardware for the gaming industry for over 10 years.
We design and manufacture P-CAP, Touch Monitor, Monitor, Button Panel, etc.
Additionally, we independently design and manufacture hardware components like touch controllers, power controllers, LCD drivers, and light controllers used in touchscreens and display devices.
Therefore, we offer various products and customized solutions in the touch and display field, especially for gaming industry hardware, and provide direct technical support.
Q2. How to purchase products and services? What is our response time?
You can organize your requirements and send them via email to Sales@tmdtouch.com. Our sales team will respond within 12 hours.
Q3. What is the delivery time?
Samples: 15-45 days after receiving the sample fee (customized products);
Goods: 15-30 days after receiving the payment.
Q4. What payment methods are available?
T/T, Paypal; full payment is required after placing the order.
Q5. How do you control product quality?
We own our factory, and each product undergoes at least 10 strict quality inspections before shipping.
Q6. What is the warranty period for the products?
The standard product warranty is 1 year, depending on the product. We offer lifetime paid technical support after the warranty period.
Q7. What is your after-sales service?
We provide 7x24 online technical support. If needed, we can dispatch technicians within 3-7 days in Asia, North America, Australia, and Europe.
Q8. What packaging methods and shipping options do you use?
Packaging includes anti-static bags, air cushion bags, pearl cotton pads, and sturdy gravity cartons.
For sea shipping, we provide export wooden crates.
Samples and small quantities are shipped via DHL, FedEx, UPS, with shipping costs borne by the buyer.
Larger quantities are shipped by air or sea, with shipping costs borne by the buyer.
