sg-bally-twinstar dual 24

Bally TwinStar Dual 24 inch

TouchScreen & Controller




With the same dimensions as the original model, this capacitive touchscreen is specifically designed for upgrading and replacing the touch sensor on the Bally TwinStar Dual 24. It features an integrated metal backplate, including a controller


Tovis

Effinet System

TMD Model

Monitor P/N

258929-1-ALT1 / 258929-3-ALT1

258929-10003

L24C5LT1BY-BKL
L24C5LT3BY-BKU

TPC2382-V5GC

EFH-2403H

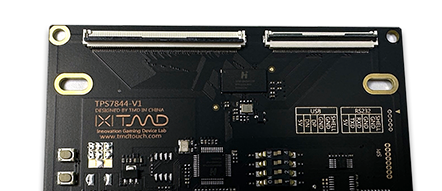

tps7844-v1
tpc2382-v5gc-01
tpc2382-v5gc-02

If you want to change our product to the machine, it is very simple.

1.Remove the old touch screen

2.Load it with our products

3.Plug in the cable, start the machine, and we're done.

Perfect match, no extra work required.

Product pictures
tpc2382-v5gc-03
tpc2382-v5gc-05
Technical parameters and characteristics

P-CAP

24"

10Points(Max)
G+G
Glass T=1.8mm

USB2.0, RS232(Optional),IIC(Optional)

≥85%

Finger
2mm(Central), 2.5mm(Edge)
<10ms
Windows xp/7 /8/10, Linux, Android, MacOS
Customize protocol for USB and RS232 interface
Supports Upgrade Firmware Via RS232 and USB Interface

Touch Technology

Screen Diagonal

Touch Points
Touch Construction
Touch Cover
Interface Type
Luminousness
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade
Proven Projected capacitive touch technology,multi-touch and independent single-touch do not nterfere with each other.
P-CAP——
S-CAP——
The touch point jumps and drifts when multi-touch occurs
The touch point keeps stable when multi-touch occurs

We design and build our own

controller?”

“Why do your P-CAP touch

screens always come with

a controller?”

Not every supplier can say this.

At TMDTechnology, we don’t just sell screens — we provide complete solutions.

Each projected capacitive (P-CAP) screen is matched and calibrated with our own controller before it leaves the factory.
每个投射式电容(P-CAP)屏幕在出厂前都会与我们自有的控制器进行匹配和校准。

That’s one of the most common questions we get

from clients.

Let us explain — clearly, technically,
and practically:

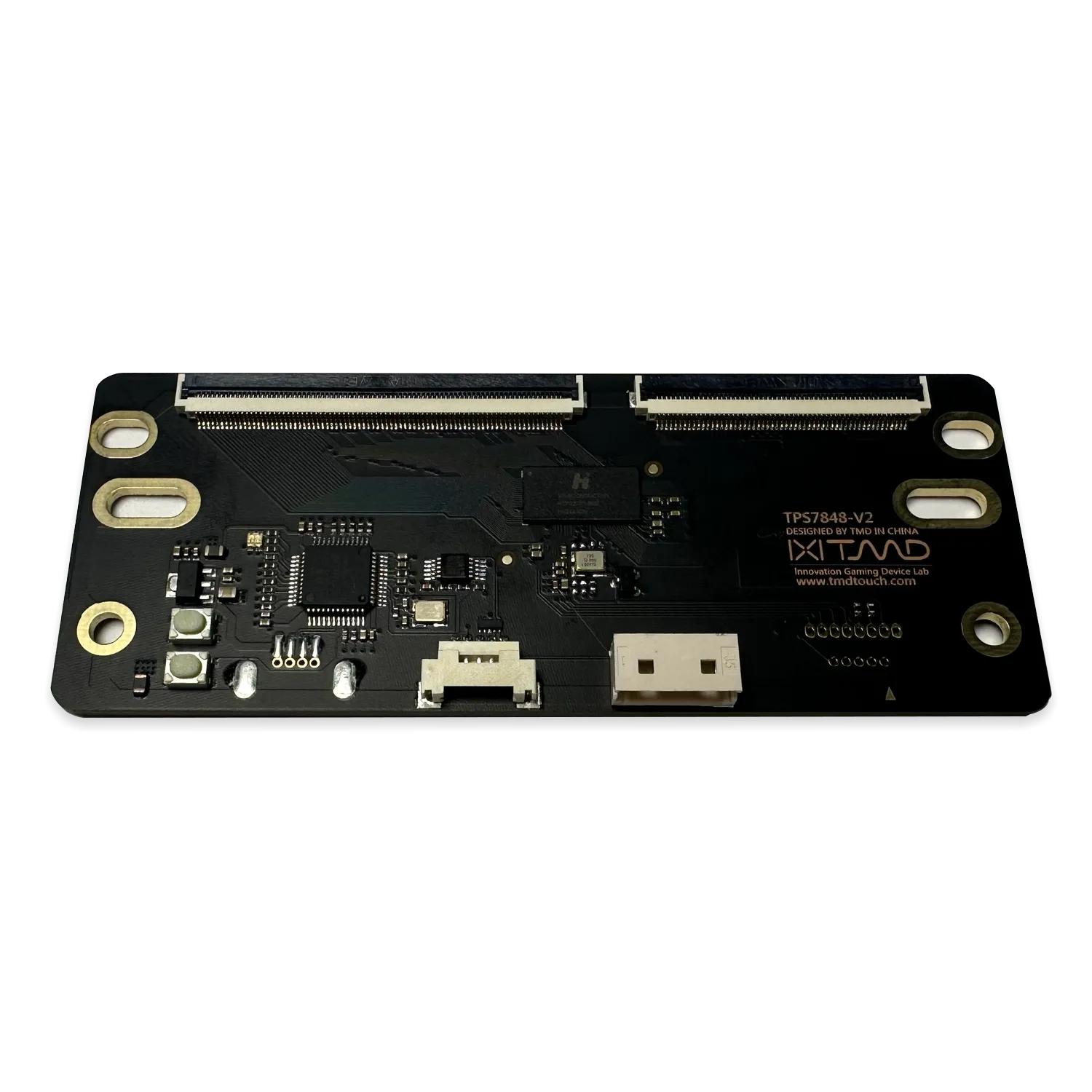

tps7844-v2
light-wonder-landmark-7000 transparent-ideck-tpc141f-v1gc

Factory-matched = Peak

performance

What happens if you only

buy the touch panel and try

to pair it with someone else’s

controller?

You can troubleshoot directly through the controller

Update the firmware when needed

No guessing, no random replacements


Maybe it works — maybe it doesn't.

You could end up with:

.

.

.

You can troubleshoot directly through the controller
Update the firmware when needed
No guessing, no random replacements

.

.

.

.

Signal interference
Touch drift or inaccurate response

Incompatibility with the panel

Constant trial and error just to figure out

 what’s wrong


We don’t sell just parts.

We deliver field-ready tools.


So what’s truly more reliable?

Saving a little money upfront,

or saving time, labor, and

frustration later?


That’s why our P-CAP touch screens always come with a matched controller.


At TMDTechnology, we believe a stable

system is worth far more than loose parts

that don’t fully align.
