P-CAP——​
Proven Projected capacitive touch technology，multi-touch and independent single-touch do not nterfere with each other.
The touch point jumps and drifts when multi-touch occurs​

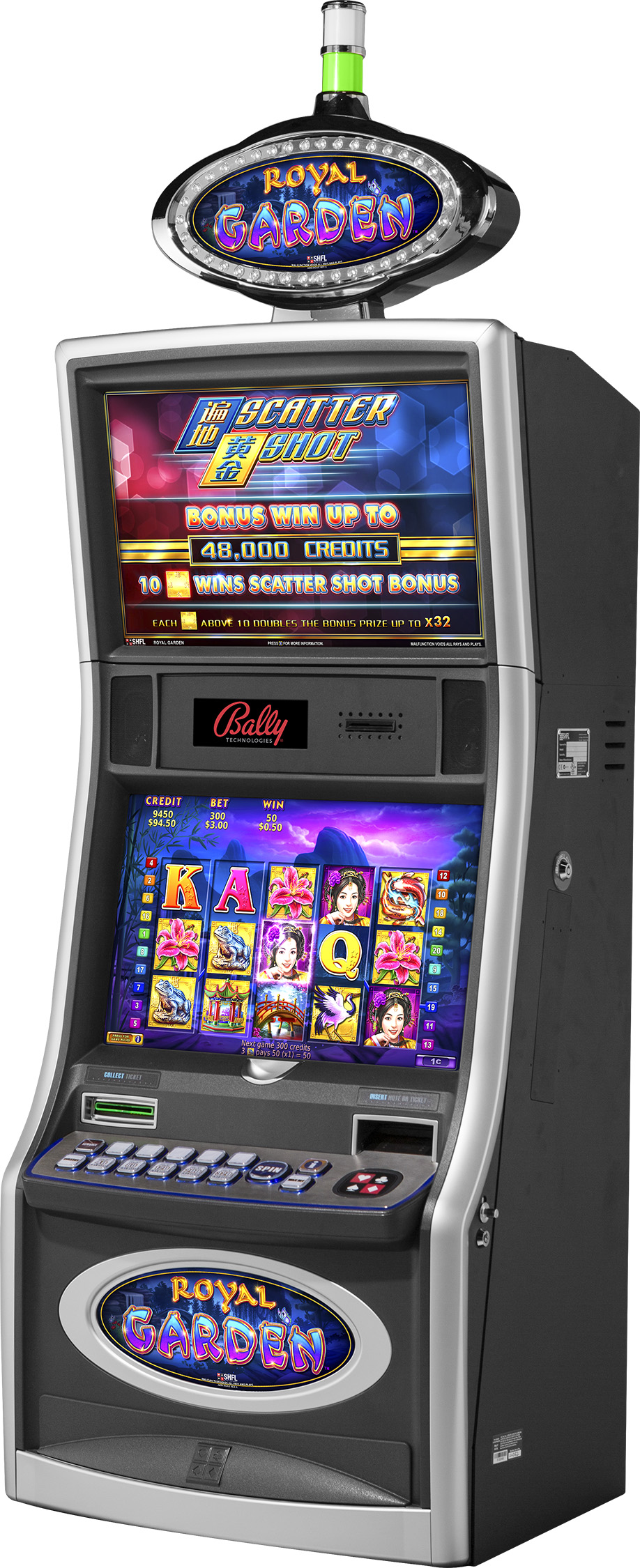

sg-shfl bally equinox slot
bally logo

SG-SHFL Bally Equinox

22" TouchScreen

With the same dimensions as the original model, this capacitive touchscreen is specifically designed for upgrading and replacing the touch sensor on the SG-SHFL Bally Equinox 22" touch monitor. It includes a controller.

  • Monitor P/N:
  • Monitor Model: EFL-2203W
  • TMD model: TPC2203-V3GC

controller-tps7844-v1

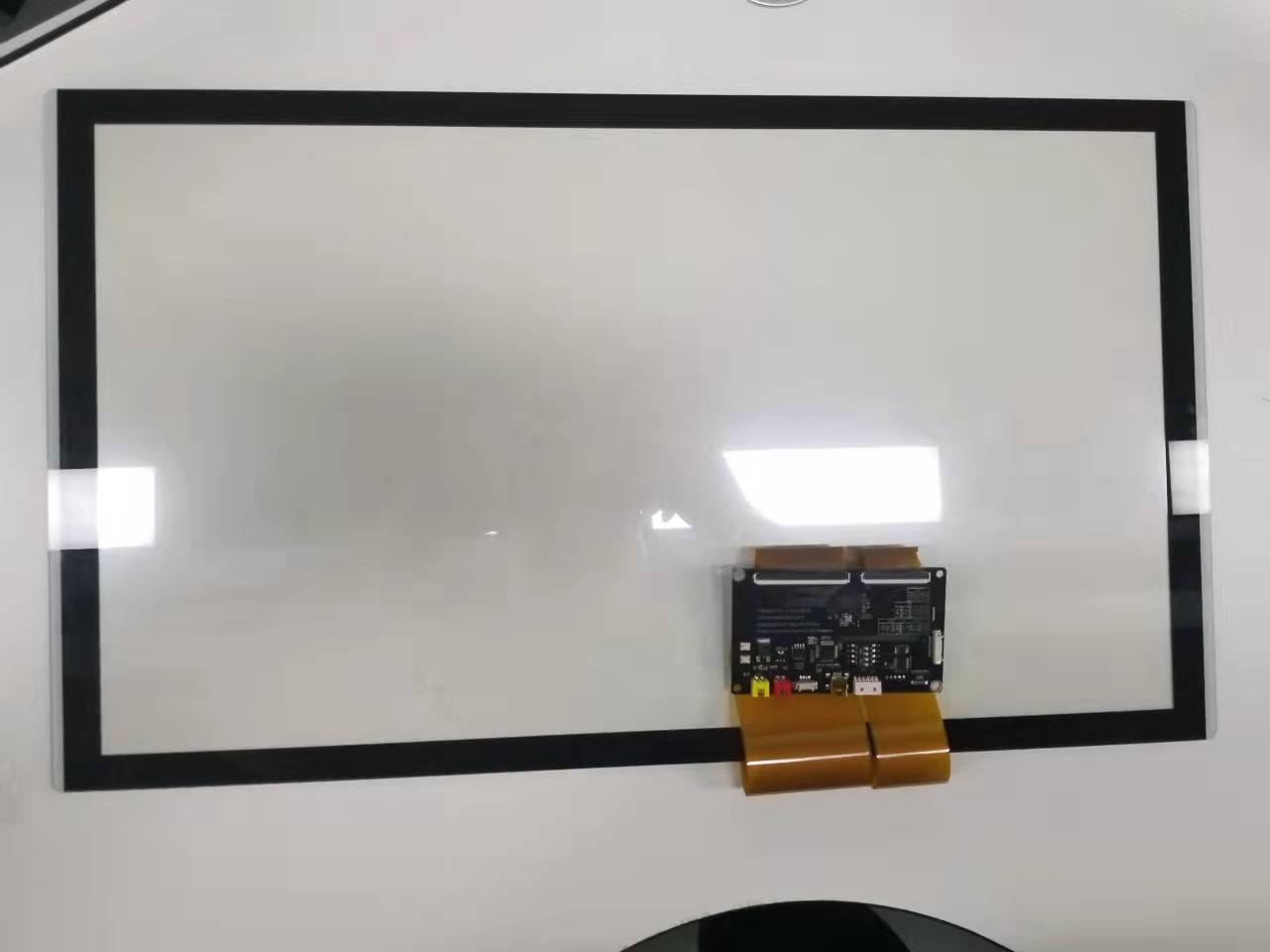

sg-shfl bally equinox touchscreen-tpc2203-v3gc

If you want to change our product to the machine, it is very simple.

1.Remove the old touch screen

2.Load it with our products

3.Plug in the cable, start the machine, and we're done.

Perfect match, no extra work required.

Technical parameters and characteristics：
P-CAP
10Points（Max）
G+G
Glass T=1.8mm

USB2.0, RS232(Optional),IIC(Optional)

≥85%

Finger
2mm（Central）， 2. 5mm（Edge）
<10ms
Windows xp/7 /8/10, Linux, Android, MacOS
Customize protocol for USB and RS232 interface
Supports Upgrade Firmware Via RS232 and USB Interface
S-CAP——  ​
The touch point keeps stable when multi-touch occurs
Quality Assurance
Products are assembled in a dust-free workshop,all accessories are made of raw materials, no second hand materials.
