23.8 inch Curved LCD Panel
23.8 英寸弧形液晶面板

For Aristocrat Neptune Button Panel

Fully compatible with the original setup, this Curved LCD panel is designed to seamlessly

upgrade and replace the display on the Aristocrat Neptune button panel. It delivers sharp

image quality and vibrant colors, supports true plug‑and‑play installation, and requires

no adjustments for immediate integration.


Monitor Model

KTB238DPA03


TMD Model

TLP2382-V1



Product  Images

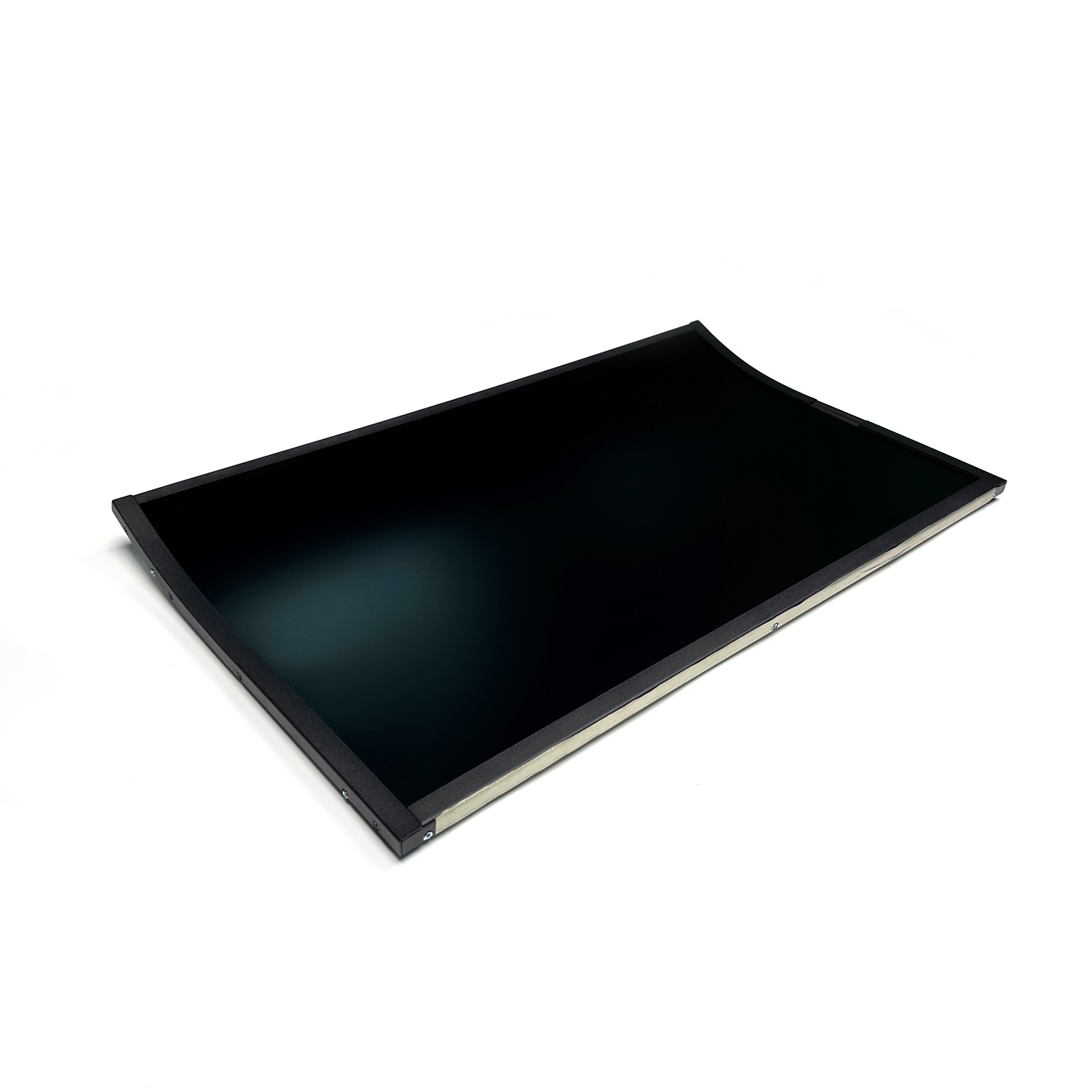

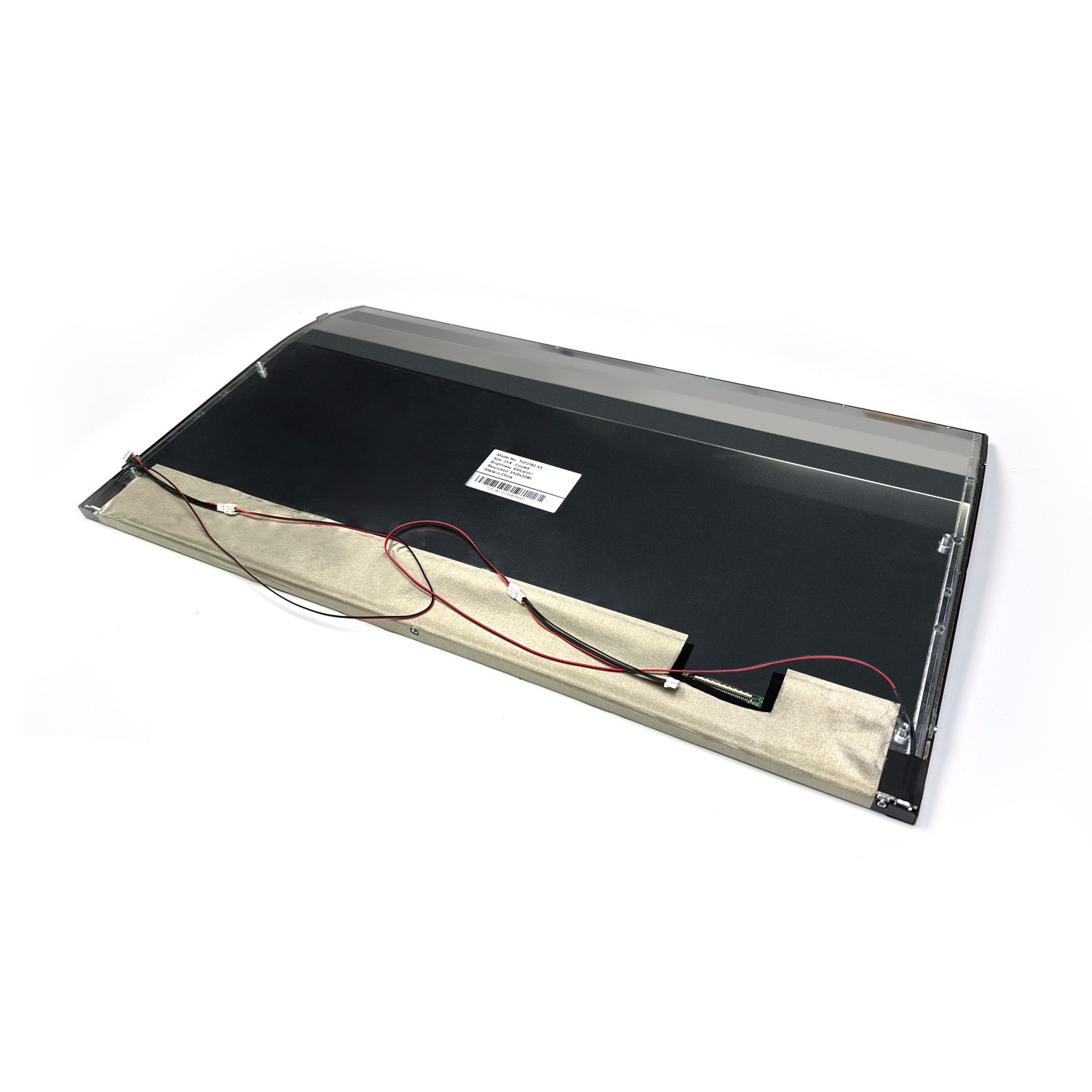

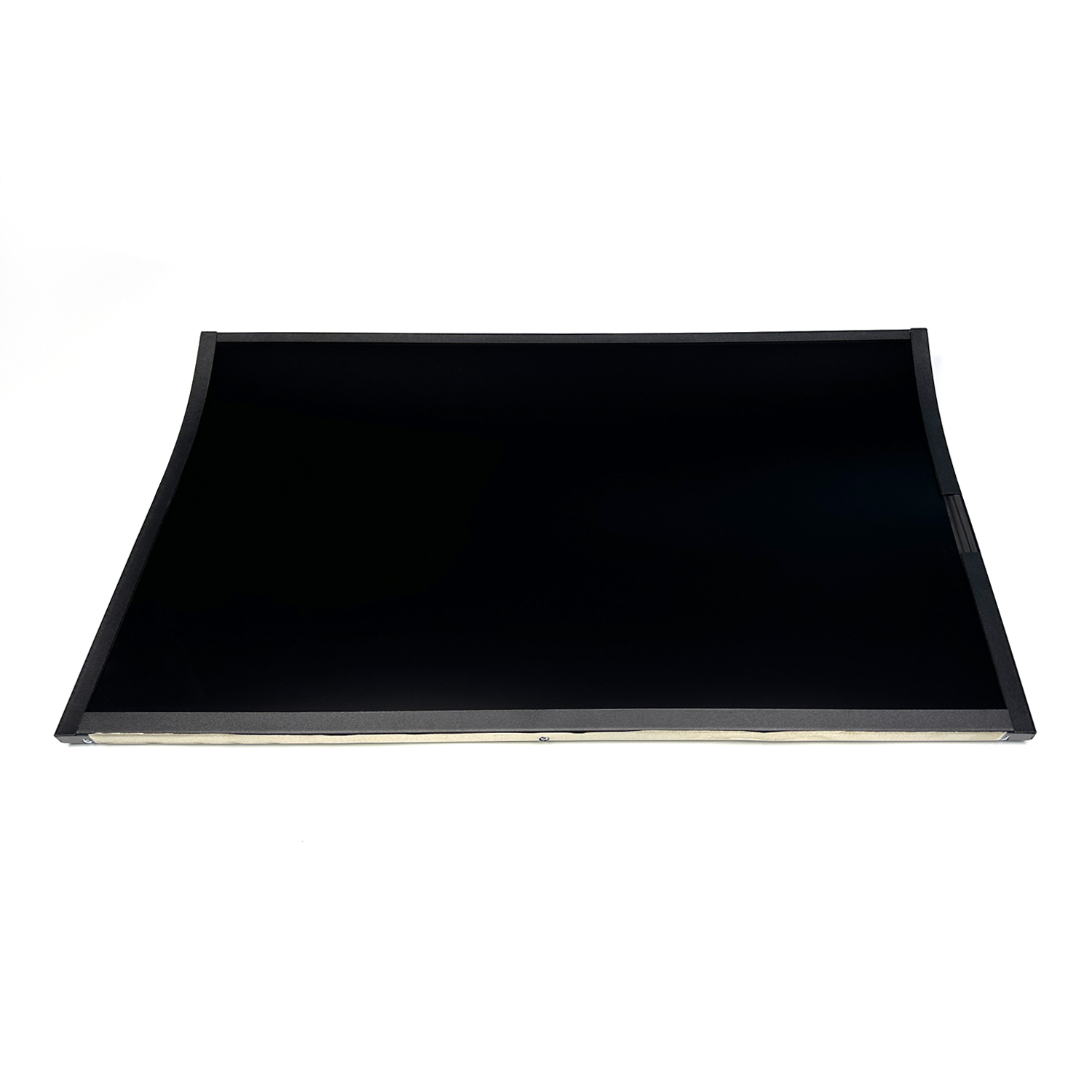

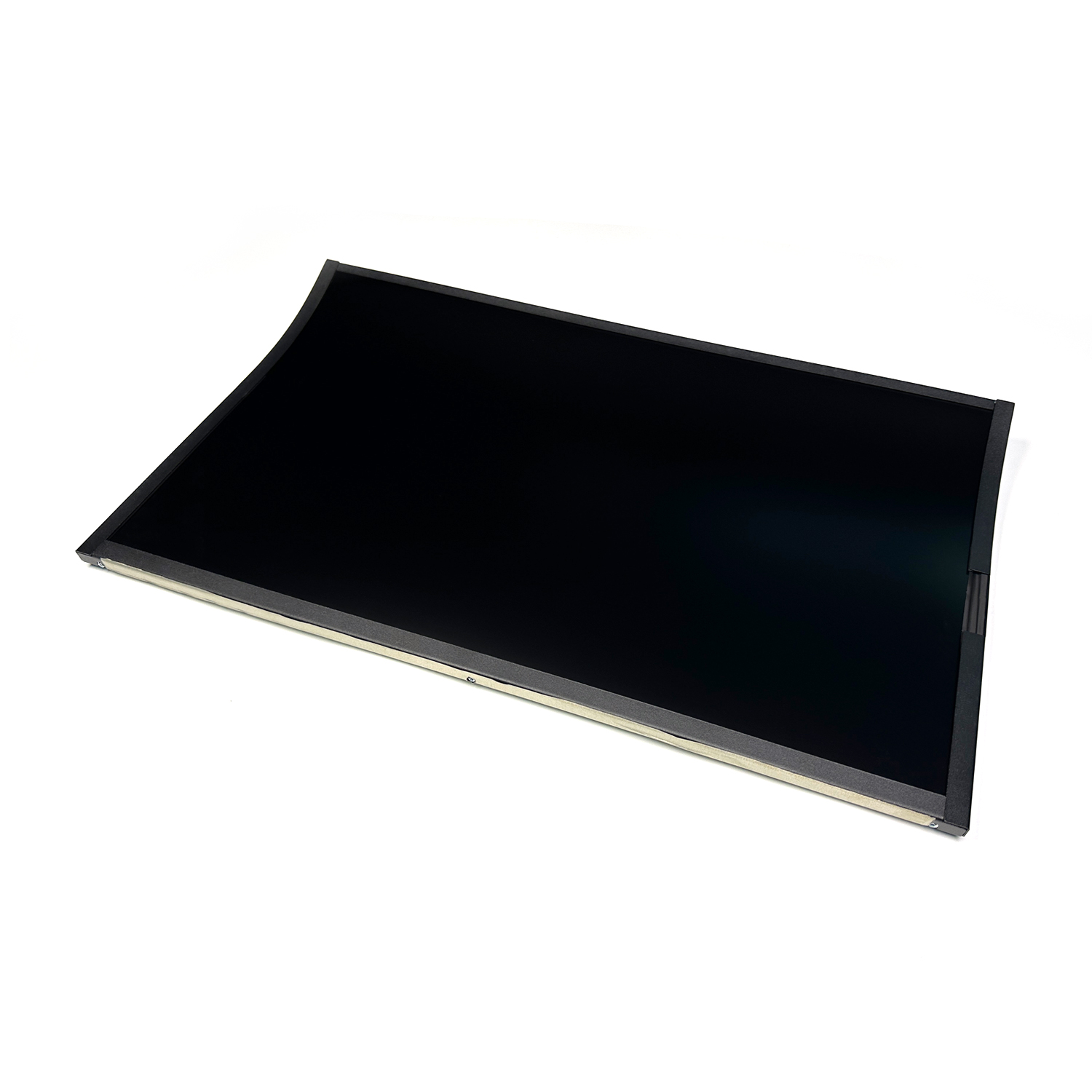

aristocrat-neptune-curved-lcd-button-panel-tlp2382-v1-04
aristocrat-neptune-curved-lcd-button-panel-tlp2382-v1-03
aristocrat-neptune-curved-lcd-button-panel-tlp2382-v1-04
aristocrat-neptune-curved-lcd-button-panel-tlp2382-v1-03
Mechanical ​
TLP2382-V1
555.9mm x 321.66mm x 43.22mm
1.96kg


Product Model
Product Dimension
Net Weight

LCD Display
23.8 inch

527.04mm x 296.46mm

1920*1080
16.7M
16 : 9
3000：1
500cd/cm²
LED Lighting Bar Type
89/89/89/89
Panel Size
Active Area
Number Of Pixels
Display Colors
Scale Ratio
C/R
Brightness
Back-Light
Viewing Angle Range
Environmental

Operating：0°C~50°C

Storage：-20°C~60°C



≦90RH

Temperature



Humidity

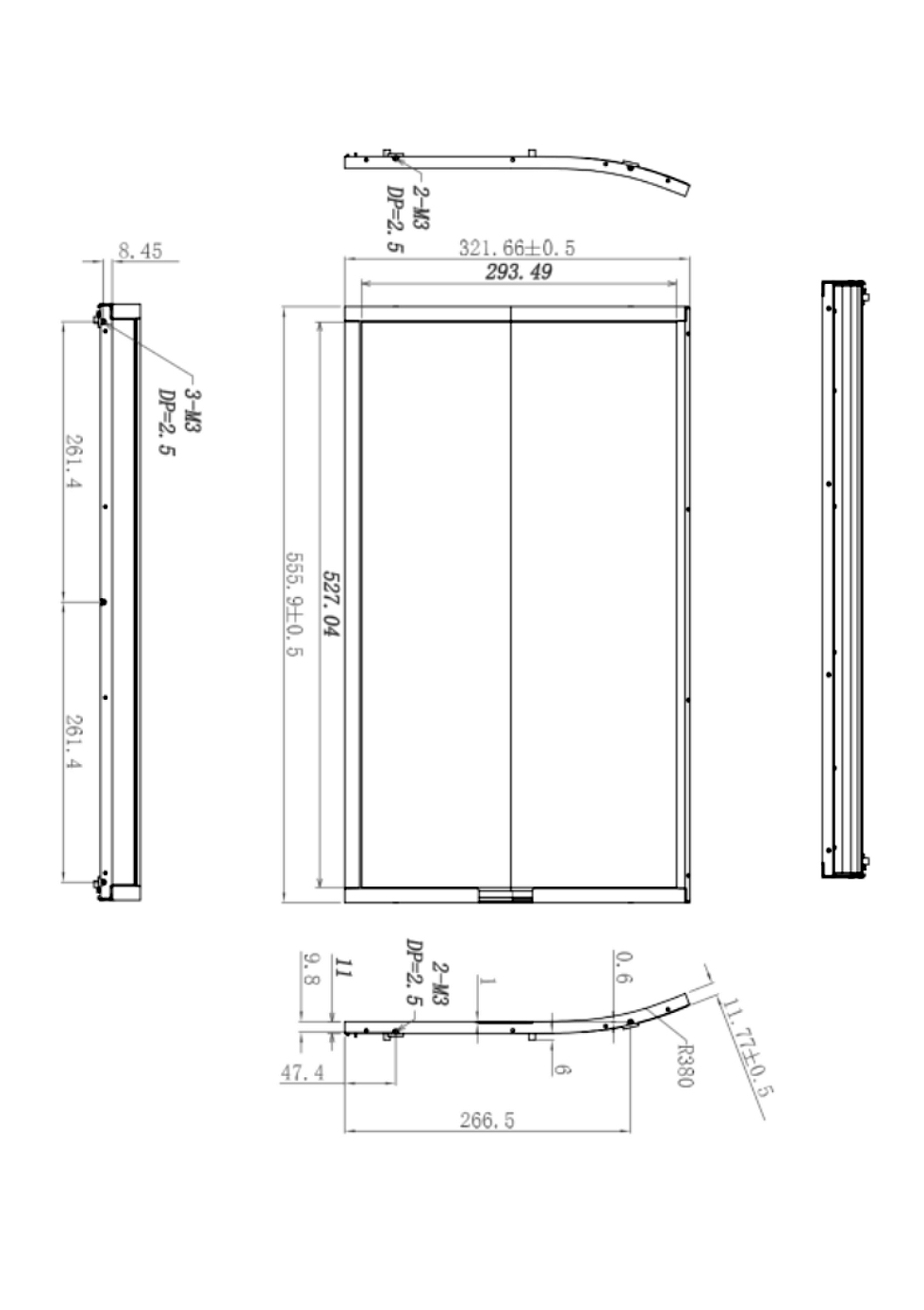

Dimensions

aristocrat-neptune-curved-lcd-tlp2382-v1-structure-diagram

Quality Assurance

  • 2011

  • 07-07

Products are assembled in a dust-free workshop,
all accessories are made of raw materials, no second hand materials.

tmdtouch-workshop-1
tmdtouch-workshop-2

FAQ

Q1.What services do we provide?
TMDtouch is a technology-driven R&D and manufacturing company, specializing in the touch and display field for 13 years, and has been designing and manufacturing touch display hardware for the gaming industry for over 10 years.
We design and manufacture P-CAP, Touch Monitor, Monitor, Button Panel, etc.
Additionally, we independently design and manufacture hardware components like touch controllers, power controllers, LCD drivers, and light controllers used in touchscreens and display devices.
Therefore, we offer various products and customized solutions in the touch and display field, especially for gaming industry hardware, and provide direct technical support.
Q2. How to purchase products and services? What is our response time?
You can organize your requirements and send them via email to Sales@tmdtouch.com. Our sales team will respond within 12 hours.
Q3. What is the delivery time?
Samples: 15-45 days after receiving the sample fee (customized products);
Goods: 15-30 days after receiving the payment.
Q4. What payment methods are available?
T/T, Paypal; full payment is required after placing the order.
Q5. How do you control product quality?
We own our factory, and each product undergoes at least 10 strict quality inspections before shipping.
Q6. What is the warranty period for the products?
The standard product warranty is 1 year, depending on the product. We offer lifetime paid technical support after the warranty period.
Q7. What is your after-sales service?
We provide 7x24 online technical support. If needed, we can dispatch technicians within 3-7 days in Asia, North America, Australia, and Europe.
Q8. What packaging methods and shipping options do you use?
Packaging includes anti-static bags, air cushion bags, pearl cotton pads, and sturdy gravity cartons.
For sea shipping, we provide export wooden crates.
Samples and small quantities are shipped via DHL, FedEx, UPS, with shipping costs borne by the buyer.
Larger quantities are shipped by air or sea, with shipping costs borne by the buyer.
