32"PCAP TouchScreen

Gaming Brand

Gaming Model

TouchMonitor manufacturer

Size

TouchMonitor Model

TMD Model

Status

SG

Fusion

TMDtouch

32inch



TPC3202U-02

Production

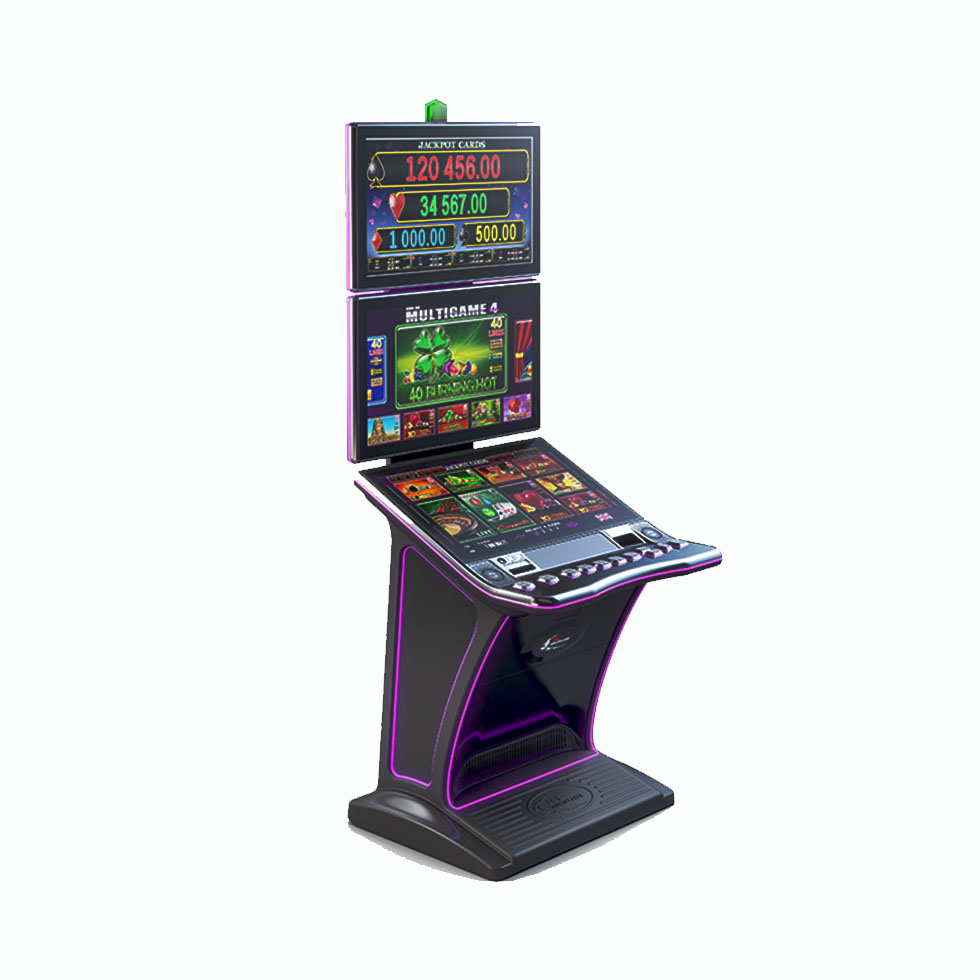

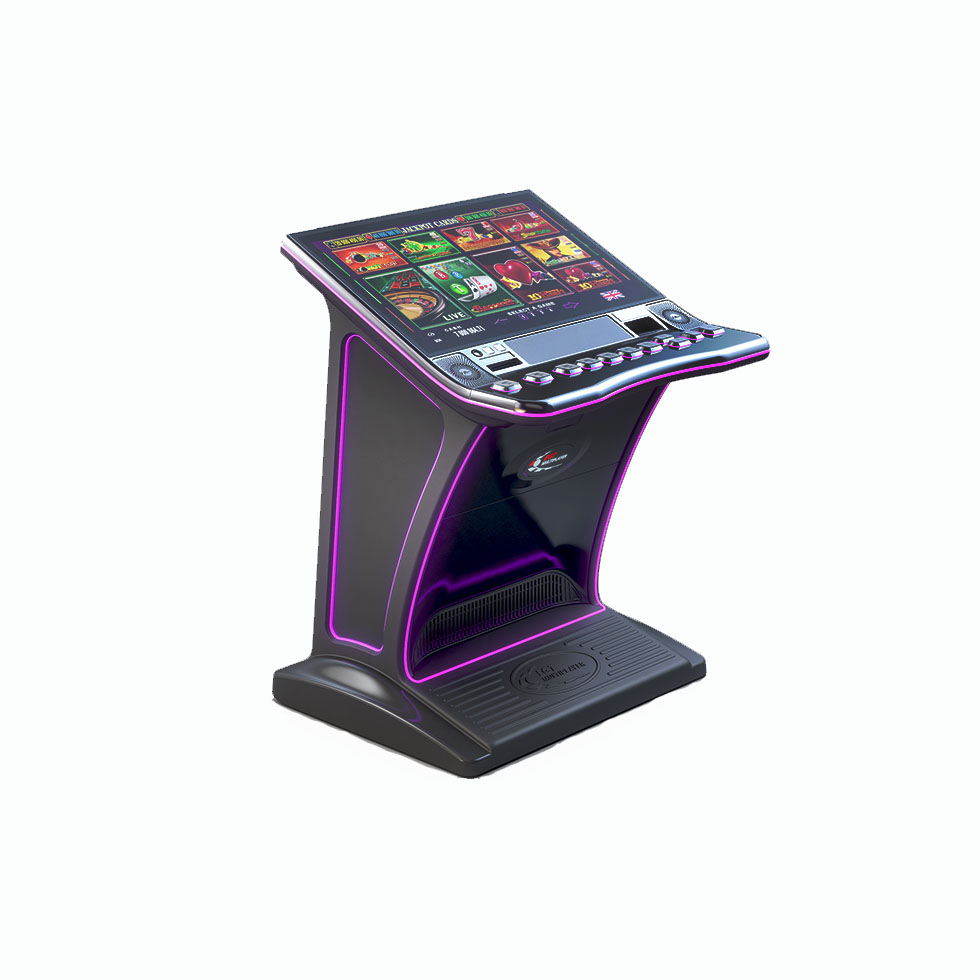

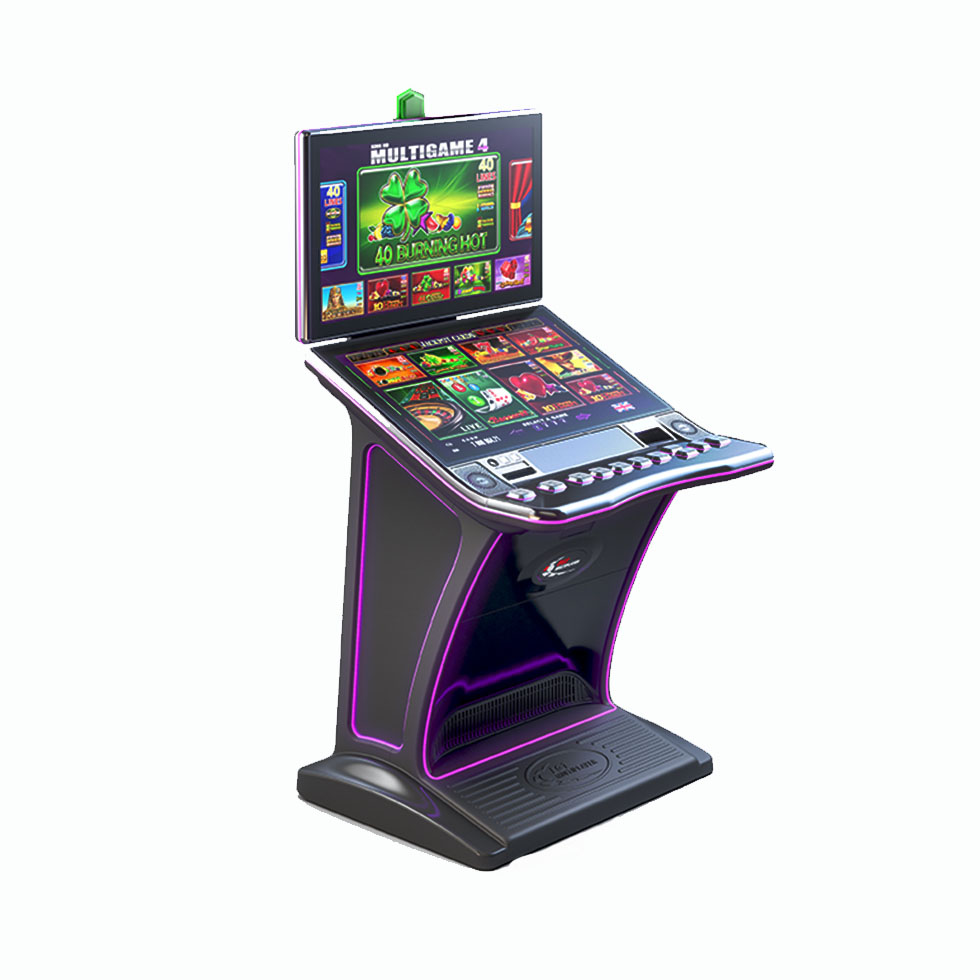

EGT

S32

Kortek

32inch



TPC3202U-02

Production

EGT

S32 32

Kortek

32inch



TPC3202U-02

Production

EGT

S32 32 27

Kortek

32inch



TPC3202U-02

Production

EGT

S32 32 32

Kortek

32inch



TPC3202U-02

Production

EGT

S32 32 55

Kortek

32inch



TPC3202U-02

Production

If you want to change our product to the machine, it is very simple.

1.Remove the old touch screen

2.Load it with our products

3.Plug in the cable, start the machine, and we're done.

Perfect match, no extra work required.

Technical parameters and characteristics：
Touch Technology
Touch Points
Touch Construction
Touch Cover
Interface
Luminousness
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade
P-CAP
10Points（Max）
G+G
Glass T=1.8mm
USB-B Female RS232 DB9 Female
≥85%
Finger
2mm（Central）， 2. 5mm（Edge）
<10ms
windows xp/7 /8/10， Linux, Android, macOS
customize protocol for USB and RS232 interface
Supports Upgrade Firmware Via RS232 And USB Interface
Proven Projected capacitive touch technology，multi-touch and independent single-touch do not nterfere with each other.​
S-CAP——  ​
P-CAP——​
The touch point jumps and drifts when multi-touch occurs​
The touch point keeps stable when multi-touch occurs
Quality assurance
Products are assembled in a dust-free workshop,all accessories are made of raw materials, no second hand materials.
