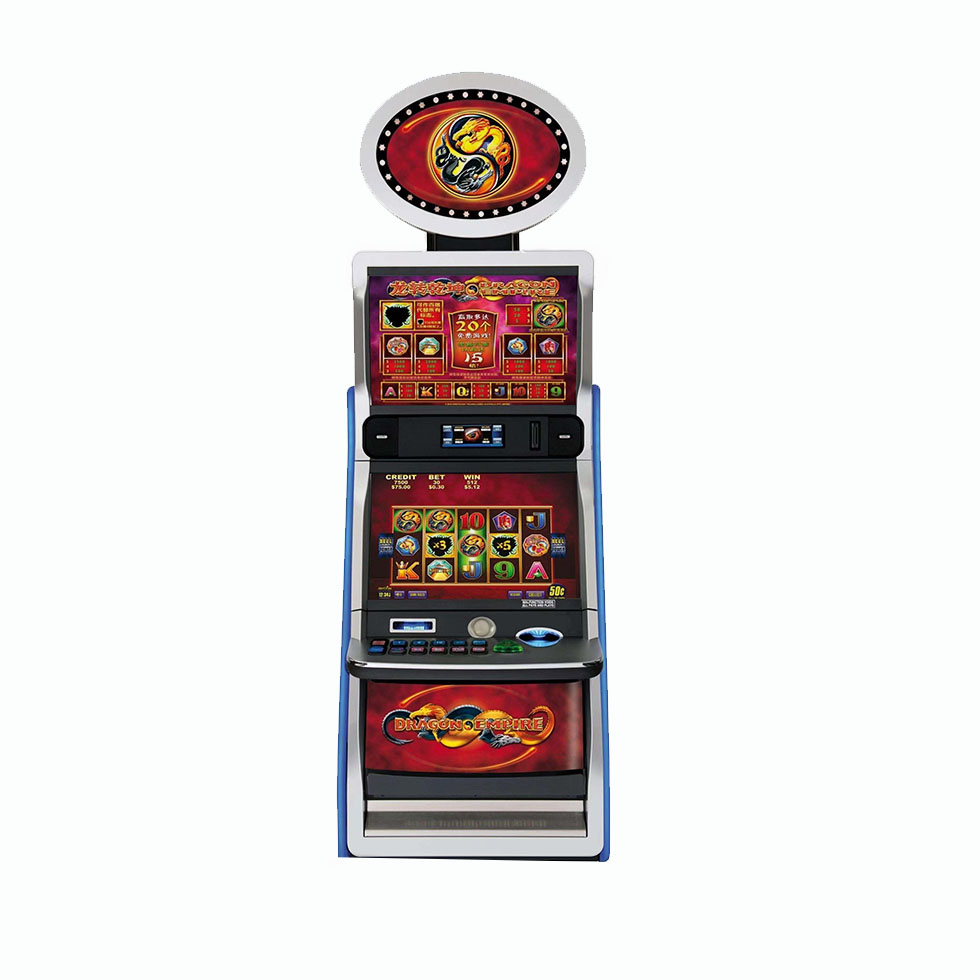

This 22-inch capacitive touch screen is specially designed for gaming machines and is suitable for:

Gaming Brand

Gaming Model

TouchMonitor manufacturer

Size

TouchMonitor Model

TMD Model

Status

Aristocrat

Gen 7 Viridian WS

Kortek

22inch



TPC2203U-01

Production

Aristocrat

Gen 7 Upright

Kortek

22inch



TPC2203U-01

Production

Aristocrat

Gen 7 Slant

Kortek

22inch



TPC2203U-01

Production

Aristocrat

Gen 7 Hybird

Kortek

22inch



TPC2203U-01

Production

SG-SHFL Bally

Equinox

Kortek

22inch



TPC2203U-01

Production

EGT

Roulette R8

Kortek

22inch



TPC2203U-01

Production

Microtouch

C2234SW/

C2254PW

Microtouch

22inch



TPC2203U-01

Production

If you want to change our product to the machine, it is very simple.

1.Remove the old touch screen

2.Load it with our products

3.Plug in the cable, start the machine, and we're done.

Perfect match, no extra work required.

Technical parameters and characteristics：
Touch Technology
Touch Points
Touch Construction
Touch Cover
Interface
Luminousness
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade
P-CAP
10Points（Max）
G+G
Glass T=1.8mm
USB-B Female RS232 DB9 Female
≥85%
Finger
2mm（Central）， 2. 5mm（Edge）
<10ms
windows xp/7 /8/10， Linux, Android, macOS
customize protocol for USB and RS232 interface
Supports Upgrade Firmware Via RS232 And USB Interface
Proven Projected capacitive touch technology，multi-touch and independent single-touch do not nterfere with each other.​
P-CAP——​
S-CAP——  ​
The touch point jumps and drifts when multi-touch occurs​
The touch point keeps stable when multi-touch occurs

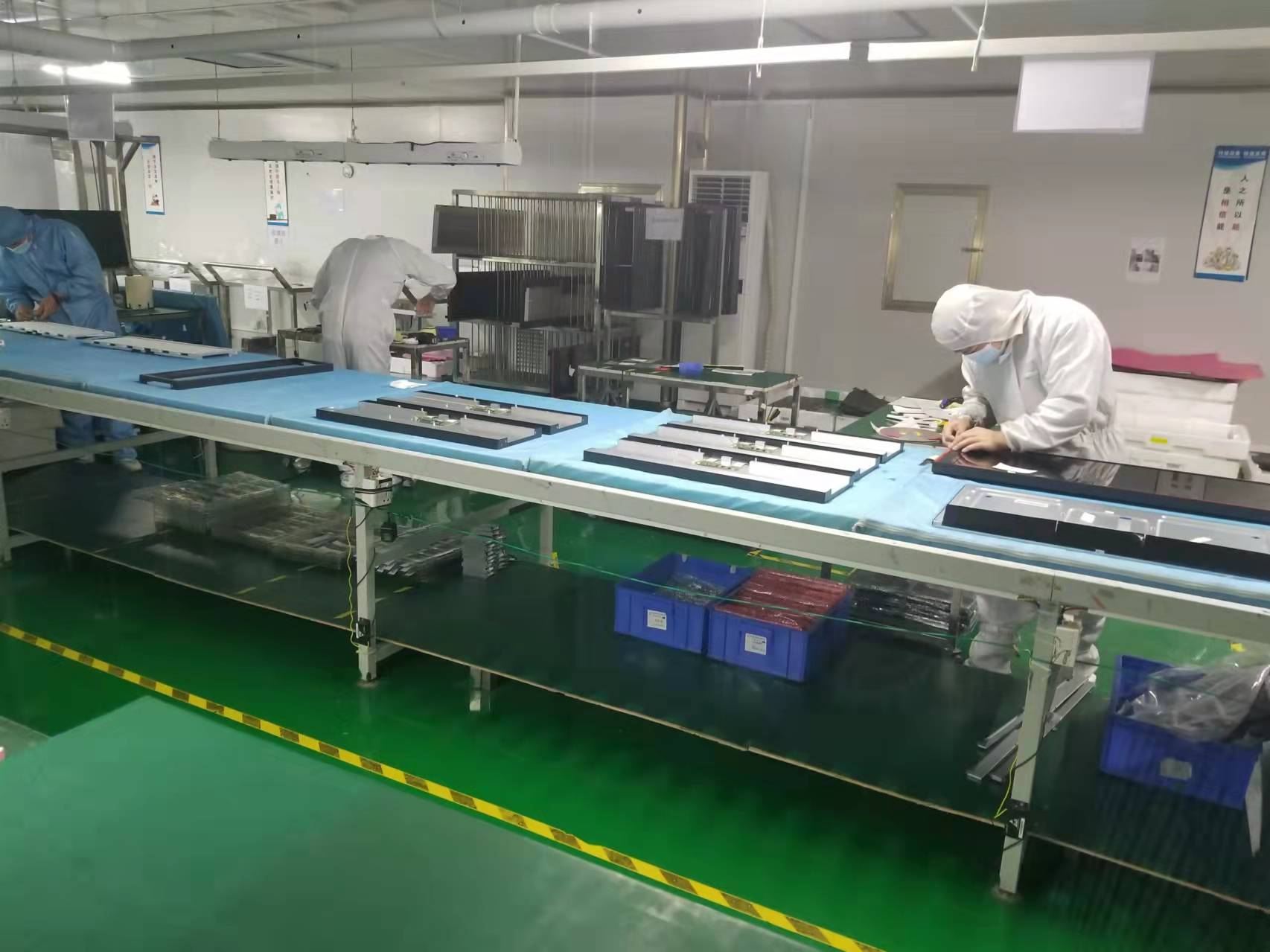

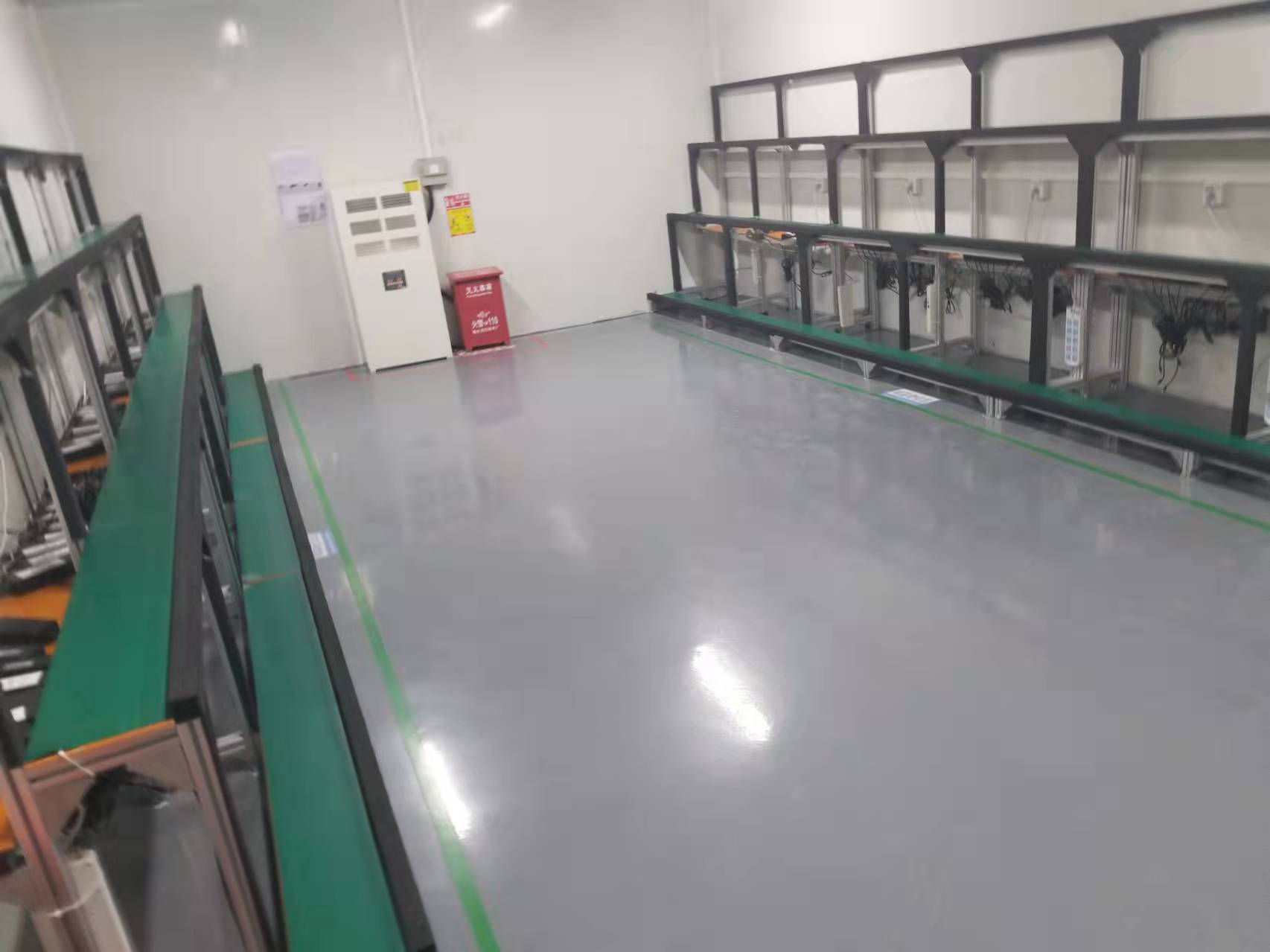

Quality assurance
Products are assembled in a dust-free workshop,all accessories are made of raw materials, no second hand materials.
